  We are main manufacturer of pellet mills in China.GEMCO have specialised in the design of pellet mill for sale in China.




Ring Die Pellet Mills China
GC-MZLH-Series pellet mill is the most equipment during pelletizing process.Our GC-MZLH-Series pellet mill includes feeder & conditioner & gear box & ring die & lubricate system. By the moveable screw of feeder, the dried material is transferred into the conditioner. The moisture content is the most important element to pelletize good quality pellet, so the conditioner is also very crucial to soften the raw material by water or steam. After softening the raw material, the suitable raw material is sent to the pellet mills chamber by imperative feeder, when the roller is moving in the pellet mills chamber, it makes the raw material inletting the holes in the ring die and form the pellet. After pelletizing, the length of the pellet can be cut according to the user’s request.

Special Features:
Has belt driven or gear driven; skf bearing;auto-adjusting feeding; adopting steam adjusting system; auto-adjust steam inlet; 24 hours continously working. Volume of the conditioner is dia 320x2000mm; conditioner is made by stainless steel; access door at side; this design is easy to exam


pellet mill
Model: GC-MZLH508
Capacity: 2000-2500kgs/hour
Power: 138.80kw
Measurements: 340x130x180, 340x150x180cm
Feature: Gear transmission and with conditioner

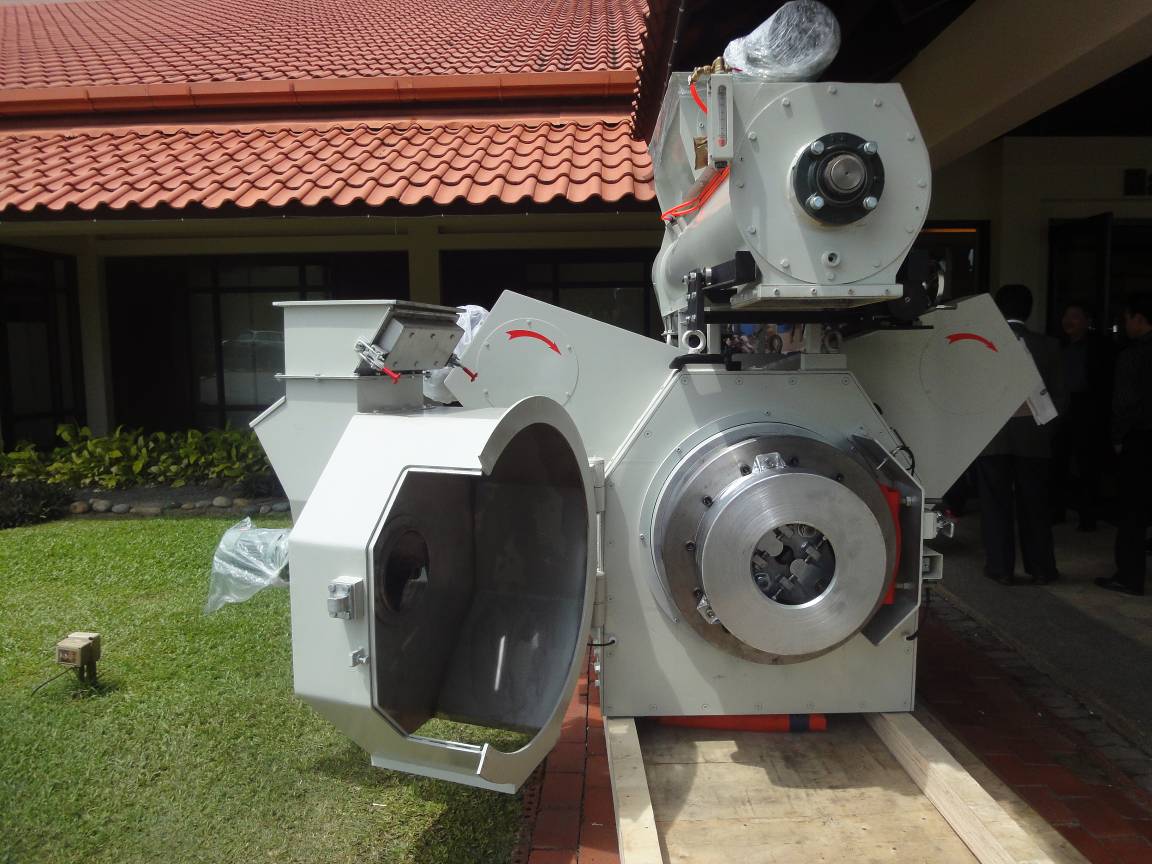

Pellet Mill

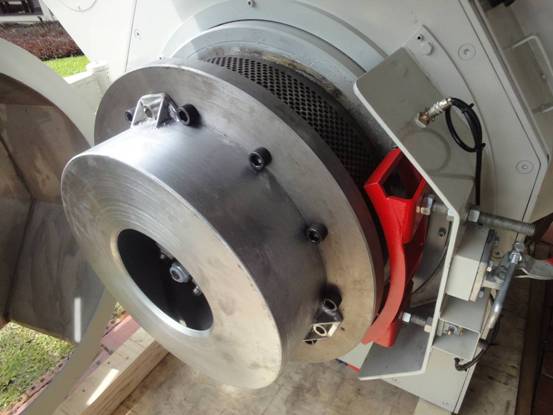

Pellet Mill Ring Die
wood pellet

Pellet Mill Ring Die
Wood Pellets

Henan Kingman M&E Complete Plant Co.,Ltd is main manufacturer of pellet mills in China.KMEC have specialised in the design of pellet mill for sale in China.

pellet mill pellet mills
Pellet Mill
It’s designed to make pellets from pinewood sawdust, oil palm material such as Empty Fruit Bunch(EFB), mesocarp fibre,etc. The raw mateiral is available in large quantity.
Type: KMPM350 gear drive
Power: Main motors 55 Kw
Conditioner 2.2 Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 500 Kg/Hr

Pellet Mill
Designed to make pellets from softwood sawdust and EFB.
Type: KMPM420 belt drive
Power: Main motors 90 Kw
Conditioner 5.5Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 800-1000 Kg/Hr


Pellet Mill
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM520 belt drive
Power: Main motors 75Kw*2 sets,total 150 Kw
Conditioner 7.5Kw
Screw feeder 2.2 Kw frequency contro
Force feeder 1.1 Kw
Capacity: 1500 kgs per hour to process teakwood sawdust pelletizing;
2000 kgs per hour to process pinewood sawdust pelletizing.


Pellet Mill
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM650
Power: Main motors 110 Kw*2 sets,total 220 Kw
Condiertion 7.5Kw
Screw feeder 3 Kw frequency control
Force feeder 1.5 Kw
Capacity: 2000 kgs per hour to process teakwood sawdust pelletizing;
3500 kgs per hour to process pinewood sawdust pelletizing.
