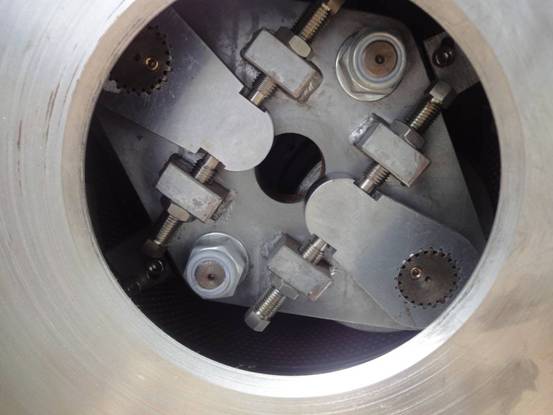

Wood Pellet Making Machine---Ring Die
We use famous brand bearing SKF for our ring die wood pellet machines, and we provide stainless steel ring die. Here are more features:
Wood Pellet Machines Features:
1. Positive direct gear drive provides a 98% energy transfer - meaning less energy wasted
2. Segmented die clamps eliminate alignment problems and enable quicker die changes
3. Metal-to-metal seals between components keep dust and steam inside the pelleting chamber
4. Stand-alone oil lubrication system is more effective in maintaining lubrication and keeping the bearings from premature wear
5. Stainless steel ring die resists corrosion and lasts longer.
6. Multi-positioning feeder enables easier installation and alignment to bins |
|
Our wood pellet making machine capacity ranges are from 200kgs to 3T per hour.Wood pellet making machine
is widely used in the granulation of wood, straw, other biomass
sources. Driven
with heavy- duty gearbox construction can produce continuously
in most adverse condition. The imported key elements are of
high performance with long life and low maintenance cost.
The key parts are made of alloy steel to be very strong and
malleable. Wood pellet making machine die is made of stainless steel.
For
wood sawdust and grazing |
| Model
|
MainMotor
Power(kw) |
Capacity(t/h)
|
Feeding
Motor Power(kw) |
Conditioner
Motor Power(kw) |
Diameter
of Die (mm) |
Diameter
of Pellet(mm) |
| GC-MZLH25
|
7.5*2
|
0.2-0.3
|
0.75+0.55
|
2.2
|
250
|
4-8
|
| GC-MZLH32
|
37
|
0.3-0.6
|
0.75+0.55
|
2.2
|
320
|
4-8
|
| GC-MZLH35
|
55
|
0.5-0.8
|
0.75+0.75
|
2.2
|
350
|
4-8
|
| GC-MZLH40
|
75
|
0.7-1.1
|
1.5+0.75
|
2.2
|
400
|
4-8
|
| GC-MZLH42
|
110
|
1.0-1.5
|
1.5+0.75
|
5.5
|
420
|
4-8
|
| GC-MZLH508
|
132/160
|
2.0-3.0
|
1.5+0.75
|
7.5
|
508
|
4-8
|
|
|
Henan Kingman M&E Complete Plant Co.,Ltd is main manufacturer of wood pellet machines in China.KMEC have specialised in the design of wood pellet making machine in China. High quality of wood pellet machine,best service. |
|
|
