Wood Pellet Plant---Ring Die
The GC-MZLH-Series wood pellet plant is designed to undertake large-scale pelletizing processes. Our GC-MZLH-Series wood pellet plants include a feeder system, conditioner, gear box, ring die mill, and lubrication system. Dried material is transferred to the conditioner by a screw feeder. Moisture content is the most important consideration for the pelletization of quality pellets. For this purpose the conditioner plays a crucial role in softening the raw material, utilizing water or steam. After softening the raw material it is sent by an imperative feeder to the pelleting chamber to be converted to wood pellets. Spinning rollers in the wood pelletizing chamber force the material through the holes of the die, thus forming pellets. After pelletizing, the length of the pellet can be cut per user's request.
The capacity of our wood pellet plants ranges from 200 kgs to 3 tons per hour. Pellet mills are widely used for the densification of wood, straw, and other biomass sources. Driven with a heavy-duty gearbox, the machinery can produce continuously in most adverse conditions. Key components are imported for the best performance, longest service life and low maintenance costs. Key parts are made of alloy steel to make them strong and malleable. The die of the wood pellet plant is made of stainless steel.
 |
 |
 |

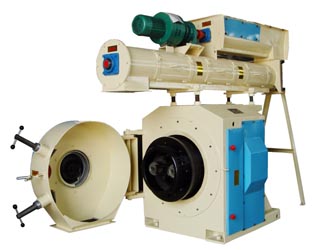

| Wood Pelletizing Plant |
Wood Pelletizing Plant |
Pellet Mill Die |
 |
 |
|

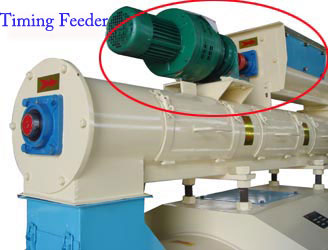

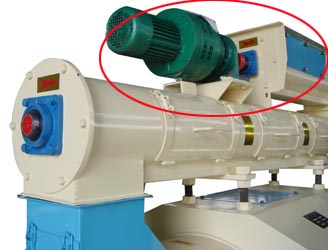

| Timing Feeder of Pellet Plant |
Force Feeder of Pellet Plant |
|
| Model |
Main motor
power(kw) |
Capacity(t/h) |
Feeding
motor power(kw) |
Conditioner
motor power(kw) |
Diameter
of die (mm) |
Pellet diameter
(mm) |
| KMPM 25 |
7.5*2 |
0.2-0.3 |
0.75+0.55 |
2.2 |
250 |
4-8 |
| KMPM 32 |
37 |
0.3-0.6 |
0.75+0.55 |
2.2 |
320 |
4-8 |
| KMPM 35 |
55 |
0.5-0.8 |
0.75+0.75 |
2.2 |
350 |
4-8 |
| KMPM 40 |
75 |
0.7-1.1 |
1.5+0.75 |
2.2 |
400 |
4-8 |
| KMPM 42 |
110 |
1.0-1.5 |
1.5+0.75 |
5.5 |
420 |
4-8 |
| KMPM 508 |
132/160 |
2.0-3.0 |
1.5+0.75 |
7.5 |
508 |
4-8 |
We use SKF brand bearings for our ring die wood pelletizing plant. Our ring die is made of stainless steel.
Wood pellet equipment features:
1. Positive direct gear drive transfers energy with 98% efficiency—less energy is wasted.
2. Segmented die clamps eliminate alignment problems and enable quicker die changes.
3. Metal-to-metal seals between components keep dust and steam inside the pelleting chamber.
4. A stand-alone oil lubrication system is more effective in maintaining lubrication and keeping the bearings from wearing prematurely.
5. Stainless steel ring die resists corrosion and lasts longer.
6. Multi-positioning feeder enables easier installation and alignment to bins. |
|
| |
|
|
| |
|
| |
|
| |
| |
Mobile Pellet Plant
|
|
| |
200-300KGS Per Hour
Less labor intensive, automatic process, cooled pellets pack quickly
|
|
|
|
| |
|
|
| |
|
| |
|
| |
|
|
