  Sale of 200-300KGS Per Hour Mobile Pellet Plant. Our mobile palletizing machine can be moved near to raw material and reduce transportation cost for raw material. It's excellent to be owned by a farm.

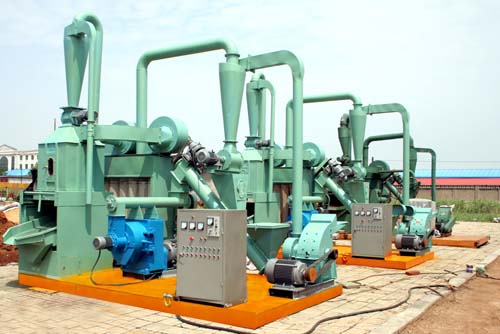

200-300KGS Per Hour Mobile Pellet Plant

Due to the rapid increase in the need of energy source, more people start to become interested in small scale wood pellet plant, they want to turn environmental wastes into pellets fuel and to be benefit from this business.

Our mobile pellet plant ZLBIO-C22 can meet above demands. It consists of hammer mill, screw conveyor, pellet mill, cooler, vibrating screener, air driven conveying system, electric control cabinet, dust collector, and etc. It can be moved near to raw material and reduce transportation cost for raw material. It's excellent to be owned by a farm.

mobile pellet plant

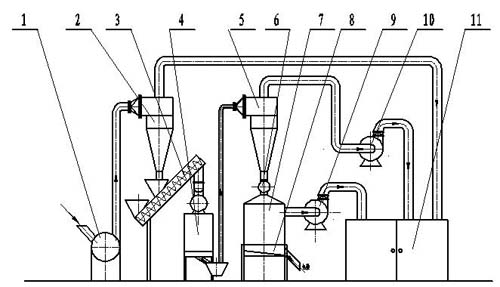

mobile pellet plant flowchart

No. Description of machine
1 Hammer mill
2 Cyclone
3 Screw conveyor
4 Pellet mill
5 Cyclone
6 Air lock
7 Cooler
8 Screener
9 Fan
10 Fan
11 Bag dust collector

This mobile pellet plant can be expanded with drying system and packing machine as per user's requirements. Thus it becomes complete system to change dry/wet wood chips, tree branches, tree leaves, stalks or straw and etc.

Parameter of mobile pellet plant ZLBIO-C22 (Follows data is based on pellet plant without drying and packing system):

Electricity consumption: 35kw per hour
Dimension: 4.2 (L) x 1.9(W) x 4m (H)

Spare parts: Ring die model GC22-300, Roller

Ring Die of Pellet Mill
wood pellet
Ring Die of Pellet Mill
Wood Pellets

Video of mobile pellet plant
