  With the rapid growth of the economy, energy demands also present unprecedented growth momentum. Renewable energy sources developped by pellet mill becoming the ideal choice to solve the problem of energy resources shortage. Our company can provide the best service to help design pellet mill plans.



Pellet Mill Plan

With the rapid growth of the economy, energy demands also present unprecedented growth momentum. Renewable energy sources developped by pellet mill becoming the ideal choice to solve the problem of energy resources shortage. Our company can provide the best service to satisfy your requirements. We can also help design pellet mill plans.

A pellet mill plan can help produce wood pellet, which composes of the workstage like wood chipping, grinding, drying, pelleting, cooling, sieving, dust collecting, packing ect.. With consecutive and reasonable process routing, every standalone machine are of high performance, the performance will be displayed on the electrical cabinet. Our pellet mill plan can use raw materials such as sawdust, wood shavings, wood chips or wood logs, any wood wastes or biomass. The pellet mill plan mainly processes are: Wood crushing (if the raw material is not already granulated), material sifter, drying (if the raw material contains too much moisture), pelletizing, cooling and bagging. The whole process is highly automatically controlled. It produces with a granular size of approx. 4 mm and a residual moisture content of approx. 15 % is required. The plant features compact structure, small occupation, low consumption and high efficiency. Our pellet mill plan for 1 metric ton per hour to 6 metric ton per hour are available, however the pellet mill plans can be designed and manufactured in accordance to the demands of the clients, and installation will be carried out and guided by professional technician.

pellet mill drawing plant

1. grinder (with cyclone)
2. roller dryer
3. conveyer
4. granule machine
5. elevator
6. coolimg separation
7. dust collector
8. ration packing machine
9. electrical cabinet

The part of pellet mill plan

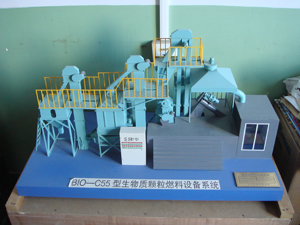

complete pellet mill model

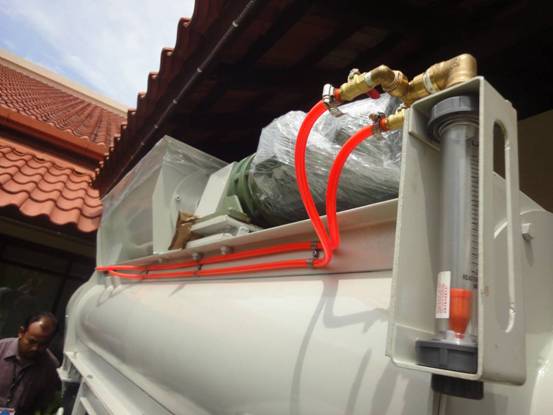

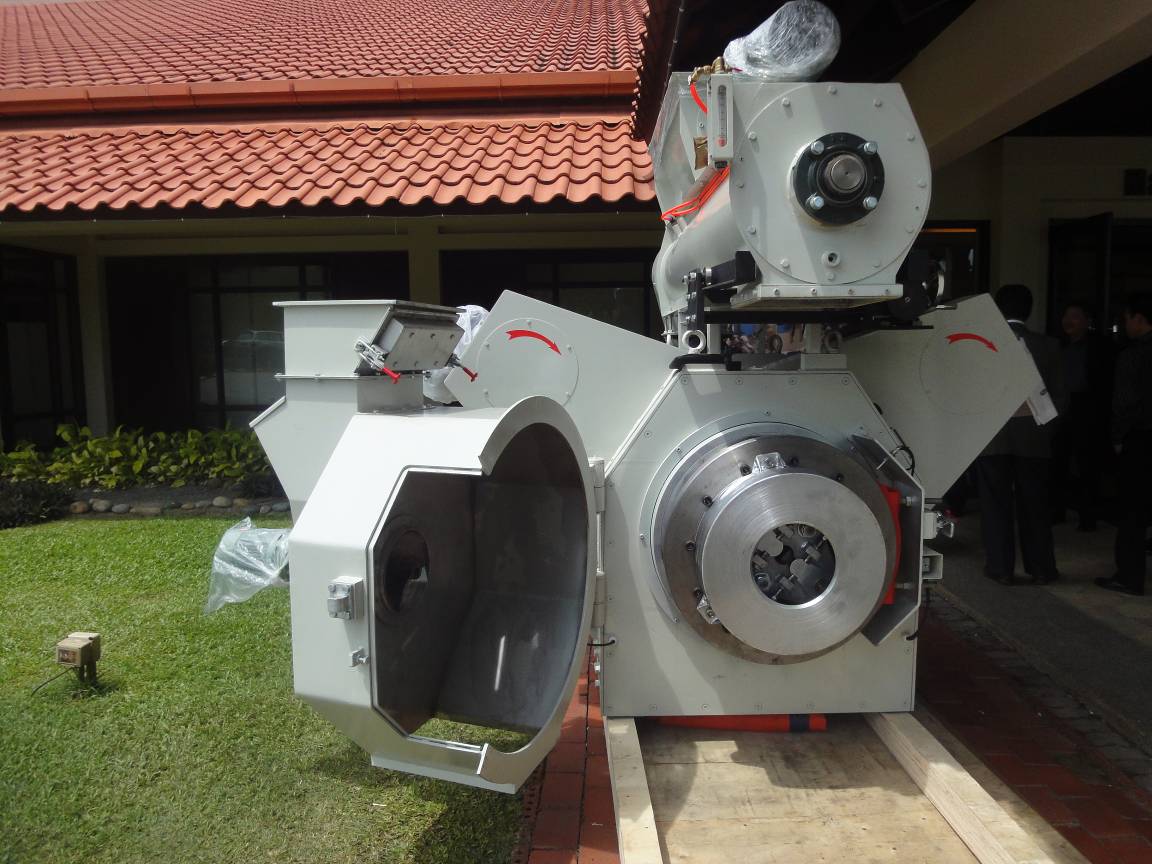

pellet mill plan pellet mill pelletizing assembly pellet mill mositure



Pellet Mill Plan
It’s designed to make pellets from pinewood sawdust, oil palm material such as Empty Fruit Bunch(EFB), mesocarp fibre,etc. The raw mateiral is available in large quantity.
Type: KMPM350 gear drive
Power: Main motors 55 Kw
Conditioner 2.2 Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 500 Kg/Hr

Pellet Mill Plan
Designed to make pellets from softwood sawdust and EFB.
Type: KMPM420 belt drive
Power: Main motors 90 Kw
Conditioner 5.5Kw
Screw feeder 0.75Kw frequency control
Force feeder 0.55Kw
Capacity: 800-1000 Kg/Hr


Pellet Mill Plan
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM520 belt drive
Power: Main motors 75Kw*2 sets,total 150 Kw
Conditioner 7.5Kw
Screw feeder 2.2 Kw frequency contro
Force feeder 1.1 Kw
Capacity: 1500 kgs per hour to process teakwood sawdust pelletizing;
2000 kgs per hour to process pinewood sawdust pelletizing.


Pellet Mill Plan
Designed to make pellet from tropical hardwood sawdust.
Type: KMPM650
Power: Main motors 110 Kw*2 sets,total 220 Kw
Condiertion 7.5Kw
Screw feeder 3 Kw frequency control
Force feeder 1.5 Kw
Capacity: 2000 kgs per hour to process teakwood sawdust pelletizing;
3500 kgs per hour to process pinewood sawdust pelletizing.
